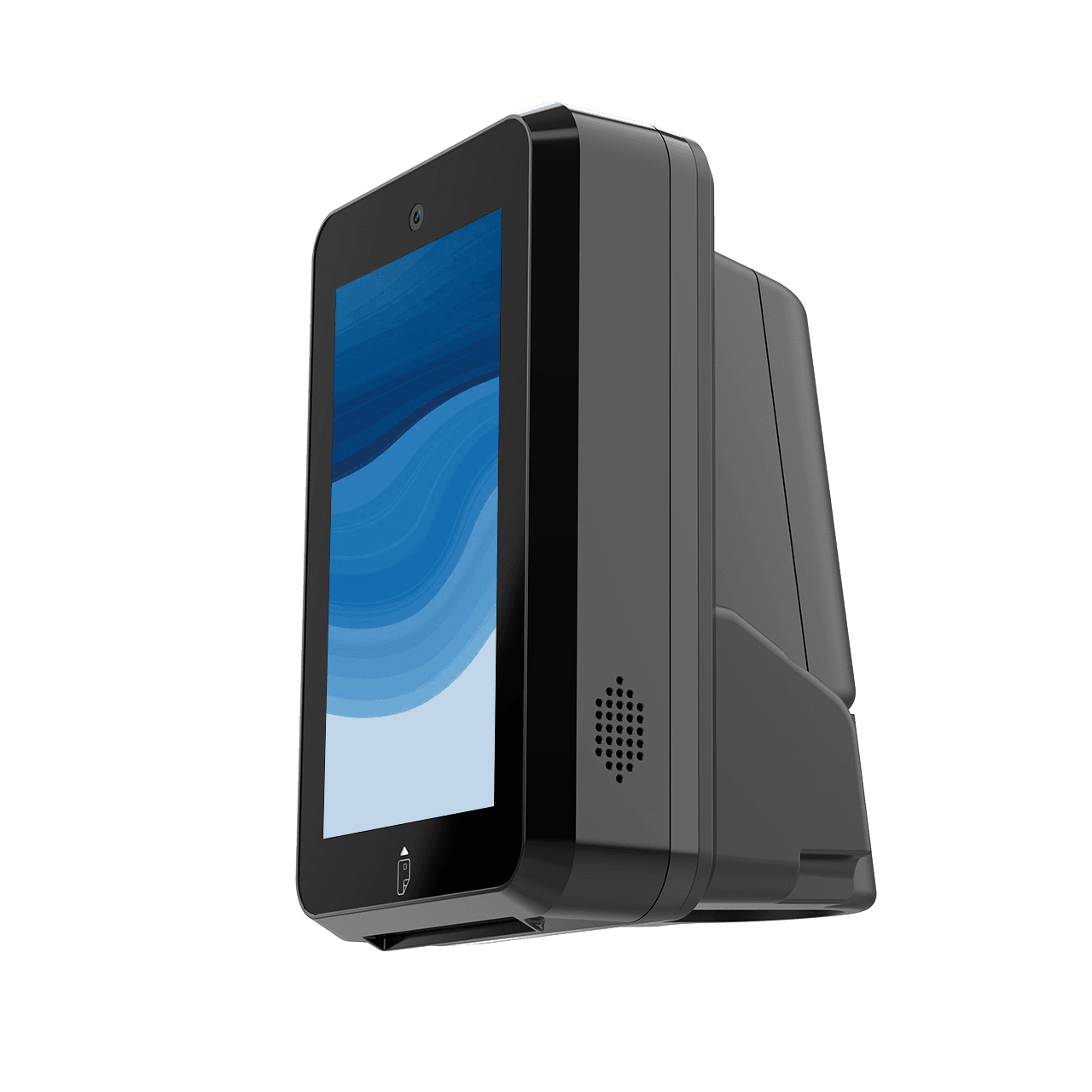

Ciontek CM30V
Enhanced CM30 with improved performance and extended capabilities.
Key Features
Discover the powerful features that make CM30V the perfect choice for your business
Enhanced processing power
Advanced display
Extended connectivity
Improved security
Voice guidance
Multi-language UI
Application Scenarios
CM30V perfect applications in various scenarios, providing unlimited possibilities for your business
Smart Self-Service
Interactive Terminal
Digital Signage
Specifications
OS
Safedroid OS (based on Android 14.0)
CPU
Quad-Core ARM Cortex-A53 2.0GHz
ROM
32GB EMMC
RAM
2GB LPDDR
Display
5.0 inch TFT IPS LCD, 1280×720
Panel
Ultra sensitive capacitive touch screen; works with gloves and wet fingers
Dimensions
152×93×41mm
Weight
418g
Input
Chinese/English; supports handwriting and soft keyboard
WIFI
IEEE 802.11 a/b/g/n/ac, 2.4GHz & 5GHz
Bluetooth
BT 5.0 and earlier
Satellite Positioning
GPS (A-GPS) / BeiDou / GLONASS
4G
EU default: FDD-LTE B1/B3/B7/B8/B20/B28; TDD-LTE B38/B40/B41. Global optional: FDD-LTE B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28; TDD-LTE B38/B40/B41
3G
EU default: WCDMA B1/B8. Global optional: WCDMA B1/B2/B4/B5/B8
2G
EU default: GSM/GPRS/EDGE 900/1800MHz. Global optional: GSM/GPRS/EDGE 850/900/1800/1900MHz
Contactless Card Reader
Supports ISO/IEC 14443A / 14443B
Camera Front
5MP
Audio
Speaker, Mic, Buzzer
Micro SD Card Slot
1 pcs
SIM Card Slot
2 pcs Micro SIM
PSAM Card Slot
6 pcs, ISO7816 standard
Peripheral Ports
1×LAN, 100Mbps, non-standard PoE +12V/+24V
USB
1×USB Type C, USB2.0
Antenna
2×SMA, External antenna
Power
12V–48V DC
Operating Temperature
-20°C to 60°C
Storage Temperature
-30°C to 70°C
Humidity
5% to 95% Relative Humidity, Non-Condensing
Certification
CE, RoHS, FCC, GMS, ATEX (GMS optional)
IP/IK Certified
IP65, IK09
Accessories
Product Structure
- Durable housing
- Precision assembly
- Easy maintenance
- Anti-slip design

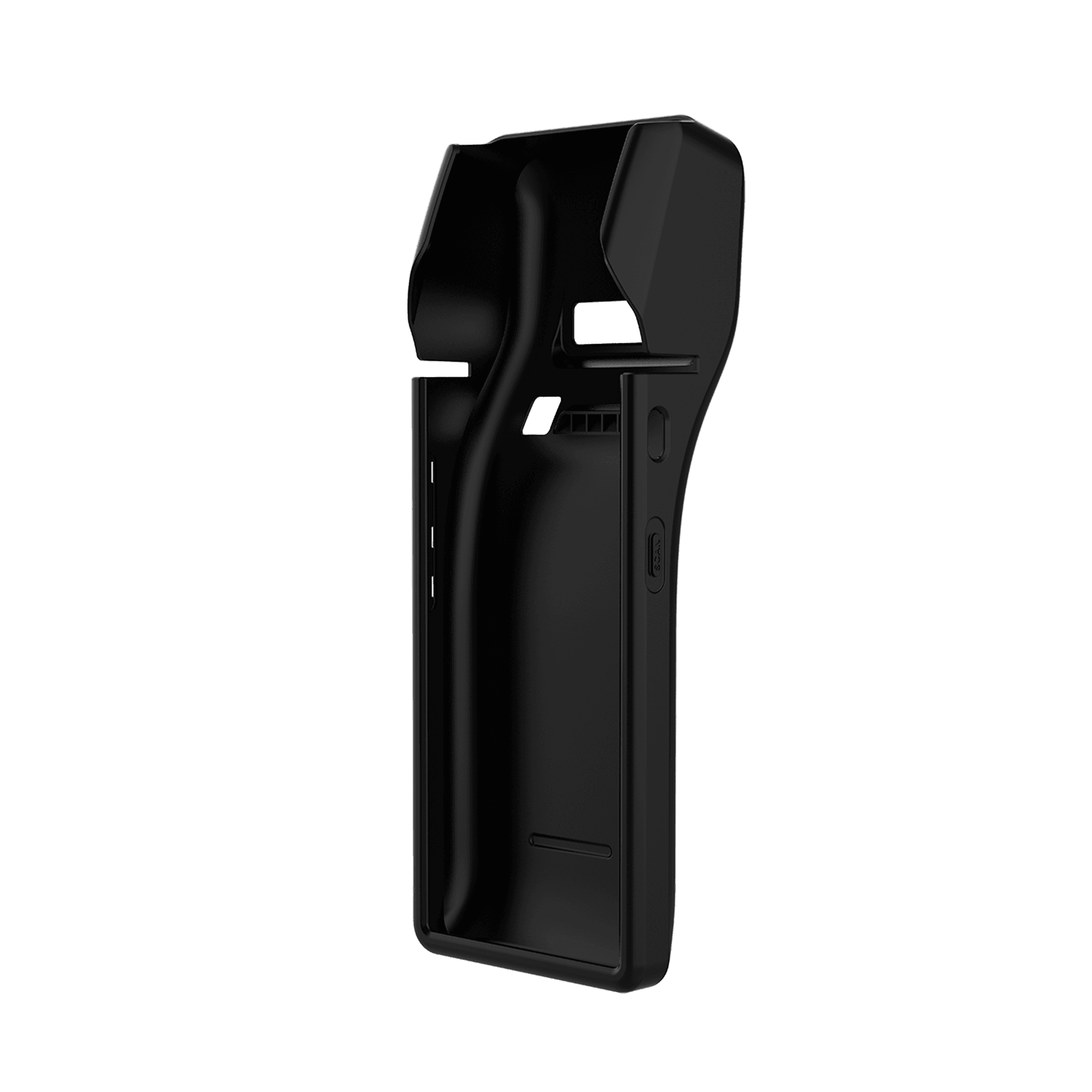

Rubber Protective Case
- Shock-proof
- Easy to clean
- Snug fit
- Anti-slip grip

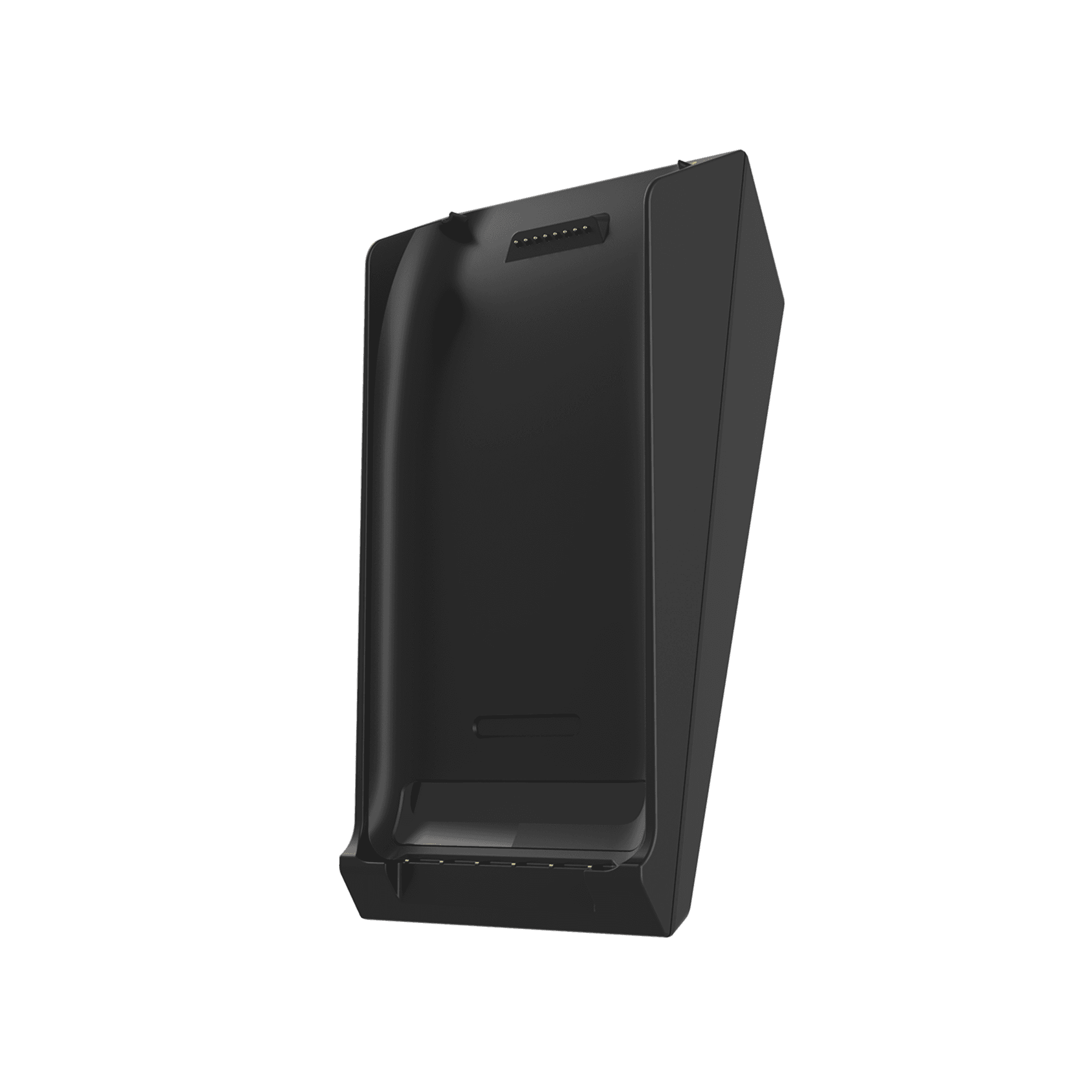

Cradle Stand
- Fast charging
- Stable support
- Multi-angle display
- Anti-slip base
